Gearbox Repair Dubai
Complete guidance on gearbox types, internal gears, shafts, bearings, synchronizers, clutch packs and repair decisions. Request a vehicle-specific gearbox inspection in Dubai for unusual noises, difficult gear selection, oil leaks or internal wear.
What Is a Car Gearbox and How Does It Work?
A gearbox manages the relationship between the power source and the drive wheels by changing rotational speed and torque. In a conventional manual gearbox, different meshing gear pairs are selected. In many automatic gearboxes, planetary gearsets and clutch elements create multiple ratios. Other designs use pulleys, dual clutches or reduction gears.
The gearbox is a precision assembly. Shafts must remain aligned; gears and bearings need correct lubrication; selection mechanisms must engage accurately. A noise, vibration or poor gear engagement can come from internal mechanical wear, a control system or even a related clutch, mount or driveshaft fault. Symptoms alone are not proof that an entire gearbox requires replacement.
For Dubai drivers, repeated stop-start traffic and high ambient temperatures make cooling, correct lubricant specification and timely investigation of leaks particularly important. Maintenance intervals and fluid procedures must follow the vehicle manufacturer's instructions.
Types of Gearboxes Explained in Detail
Different gearboxes deliver power in different ways. The components and testing method must match the exact unit, not simply the car brand or the dashboard warning light.
Manual Gearbox (MT)
Uses fixed gear pairs on input, countershaft and output shafts. The driver moves a selector while synchronizer assemblies match speeds before engagement.
Main components
- Input/counter/output shafts
- Gears, synchronizer rings, hubs and sleeves
- Selector forks, bearings and seals
Common faults & checks
Grinding during selection, gear pop-out, whine or difficult engagement. Inspect shift linkage, clutch operation, synchronizers and bearing condition before disassembly.
Clutch-system faults can resemble internal gearbox faults.
Traditional Automatic (AT)
Typically uses a torque converter, planetary gearsets, multi-plate clutches/brakes and a hydraulic valve body to establish forward and reverse ratios.
Main components
- Planetary sun, planet and ring gears
- Clutch packs, drums and bands where fitted
- Oil pump, valve body and seals
Common faults & checks
Delayed engagement, shift flare, slipping, overheating or contaminated oil. Review fluid condition, hydraulic pressures and relevant control data.
Some modern units use designs different from this typical layout.

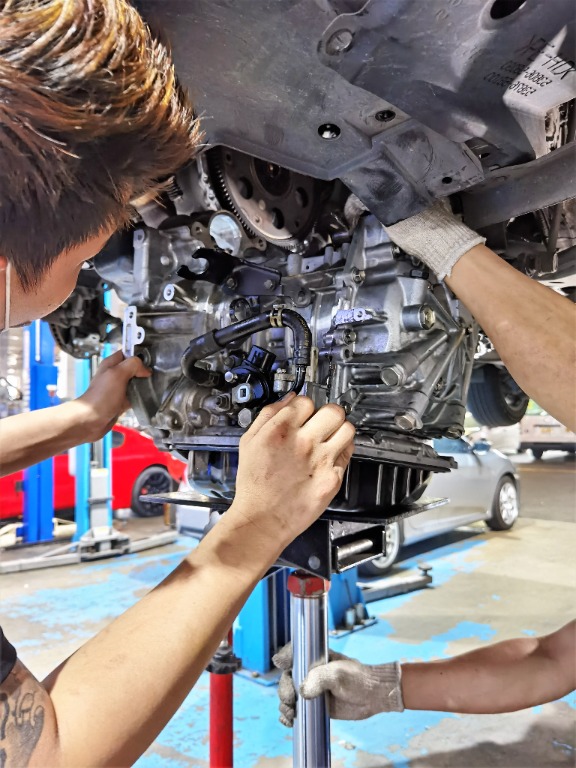

CVT Gearbox
Most belt- or chain-type CVTs use adjustable pulleys to vary the ratio continuously, rather than selecting a conventional fixed gear pair for every speed.
Main components
- Primary/secondary pulleys
- Steel belt or chain
- Hydraulic controls, bearings and oil pump
Common faults & checks
Shudder, rpm flare, abnormal whine or poor drive. Inspect the specified fluid, pulley control, pressure and belt/chain-related wear as applicable.
A power-split hybrid e-CVT is not the same as a belt CVT.
DCT / DSG Gearbox
Contains two gear paths and two clutches, allowing the next ratio to be prepared before the active clutch changes. Wet or dry clutch arrangements are used.
Main components
- Dual clutch assembly and dual gear trains
- Selector forks and bearings
- Mechatronic/hydraulic actuators where fitted
Common faults & checks
Low-speed judder, gear-selection faults, harsh engagement or drive loss. Mechanical wear, clutch condition and actuator faults require different repairs.
Correct adaptation/calibration may be required after certain repairs.
AMT Gearbox
A conventional manual-style gear train where clutch operation and/or gear selection is performed by electrical, hydraulic or electro-mechanical actuators.
Main components
- Manual-style gears and shafts
- Clutch and release mechanism
- Clutch/shift actuators and position sensors
Common faults & checks
Clutch engagement irregularities, failed shifts, no-drive conditions or warning messages. Test mechanical selector movement and actuator operation.
An AMT is mechanically different from a torque-converter automatic.
Sequential Gearbox
Ratios are selected in order, often using a selector drum or mechanism rather than an H-pattern. Some designs use dog engagement; construction varies.
Main components
- Gear clusters and engagement dogs
- Selector drum/forks
- Specialist shafts and bearings
Common faults & checks
Missed engagement, chipped dogs, excessive shift force or unusual gear noise. Requires model-specific inspection and parts sourcing.
Specialist/racing units are not serviced the same way as standard road-car gearboxes.
Hybrid Power-Split / e-CVT
Some hybrid systems use planetary power-split gearing and motor-generators to distribute power. They do not necessarily use a CVT belt or traditional shift clutches.
Main components
- Planetary power-split gearset
- Motor-generator coupling and reduction gears
- Bearings, seals and dedicated lubrication
Common faults & checks
Abnormal mechanical noise, leaks and driveline vibration require hybrid-system-aware diagnosis. High-voltage work must be performed only by qualified personnel.
Construction is manufacturer-specific.
EV Reduction Gearbox
Most passenger EV drive units use a fixed reduction ratio between the electric motor and the wheels. These are often single-speed gearboxes with an integrated differential.
Main components
- Reduction gear pairs and output shafts
- Bearings, seals and differential
- Specified lubricating/cooling systems
Common faults & checks
Whirring noise, vibration, lubricant leaks or final-drive wear. Diagnose bearing and gear condition without assuming every noise is gearbox-related.
High-voltage isolation requirements apply when work involves an EV drive unit.
Transfer Case & Low Range
On many four-wheel-drive vehicles a separate transfer case routes torque between axles, and some units add high/low range selection.
Main components
- Transfer gears or chain and sprockets
- Range selector and coupling mechanism
- Bearings, seals and actuators
Common faults & checks
4WD engagement faults, binding, chain noise or oil leaks. Transfer cases are distinct from the main gearbox but form an important part of the driveline.
Inspect only systems fitted to the vehicle.
Gearbox Components and What Each Part Does
These are common internal parts across different designs; not every gearbox contains every component. Understanding the part helps explain why a precise fault diagnosis matters.
Gear Sets / Teeth
Transmit torque at chosen ratios. Pitting, chipping or abnormal tooth contact can create noise and damage.
Input Shaft
Receives power from the engine or motor through the applicable coupling mechanism.
Countershaft / Layshaft
Carries meshing gears in many manual gearbox designs to establish the selected ratio.
Output Shaft
Delivers rotational power from the gearbox to the downstream driveline components.
Synchronizer Assembly
Helps match gear speeds before engagement in many synchronized manual gearboxes.
Selector Forks & Linkage
Move the engagement sleeve or selector mechanism into the intended gear position.
Ball / Roller Bearings
Support rotating shafts under axial or radial loads. Wear may cause whine, vibration or play.
Seals & Gaskets
Contain gear oil/ATF and protect against fluid loss and ingress of contaminants.
Planetary Gearset
Sun gear, planet gears/carrier and ring gear combine to create ratios in many automatics.
Multi-Plate Clutch Packs
Engage or hold members of automatic planetary gearsets; can suffer friction material wear.
Valve Body & Solenoids
Manage hydraulic oil flow and clutch application in many automatic gearbox designs.
Oil Pump & Filter
Supply hydraulic pressure and circulate lubricant where fitted; restrictions can affect operation.
CVT Pulleys / Belt
Change ratio continuously in pulley-type CVTs; wear and hydraulic control are critical.
DCT Dual-Clutch Unit
Connects alternate gear paths; wet/dry versions use different cooling and service procedures.
Housing & Mounting Points
Maintain alignment and support the assembly; cracks, distortion or loose mounts need attention.
Final Drive / Differential
Passes power toward the wheels and enables wheel-speed differences on many drivetrain layouts.
Common Gearbox Problems and Possible Causes
These symptoms help a technician plan tests; they are not a diagnosis on their own. A related clutch, wheel bearing, engine mount or driveshaft can imitate a gearbox fault.
Grinding While Selecting a Gear
Possible synchronizer wear, clutch release problems, incorrect linkage adjustment or damaged engagement teeth.
Whining That Changes With Speed
Possible gearbox bearings, gear tooth wear or final-drive components; road-speed comparison helps locate it.
Gear Pops Out While Driving
Can relate to selector wear, engagement damage, bearing movement or external linkage problems.
Difficulty Selecting Reverse / First
May involve clutch disengagement, selector parts, synchronizers or engagement mechanisms, depending on design.
Delayed Drive Engagement
On an automatic, inspect oil level/condition, hydraulic control, clutch engagement and stored diagnostic information.
Judder or Harsh Shifts
Possible clutch wear, control adaptation, hydraulic pressure, mount or driveline issues. Different gearbox designs need different tests.
Oil Leak Around the Gearbox
Check axle seals, shaft seals, pan/gasket, cooler connections and case damage as appropriate.
Burning Smell / Overheating
May follow fluid loss, excessive friction, restricted cooling or repeated slip. Stop operation if severe.
No Drive in One or More Gears
Could involve failed engagement, clutch packs, actuators, shafts or severe internal damage.
Metal Particles in Gearbox Oil
Some fine residue can be normal, but heavy flakes or fragments may indicate abnormal bearing/gear damage.
When not to drive: If the vehicle loses drive, has loud grinding, a significant fluid leak, severe overheating or unsafe shifting, stop in a safe location and arrange professional assistance or towing. Continued driving can increase damage and create a safety risk.

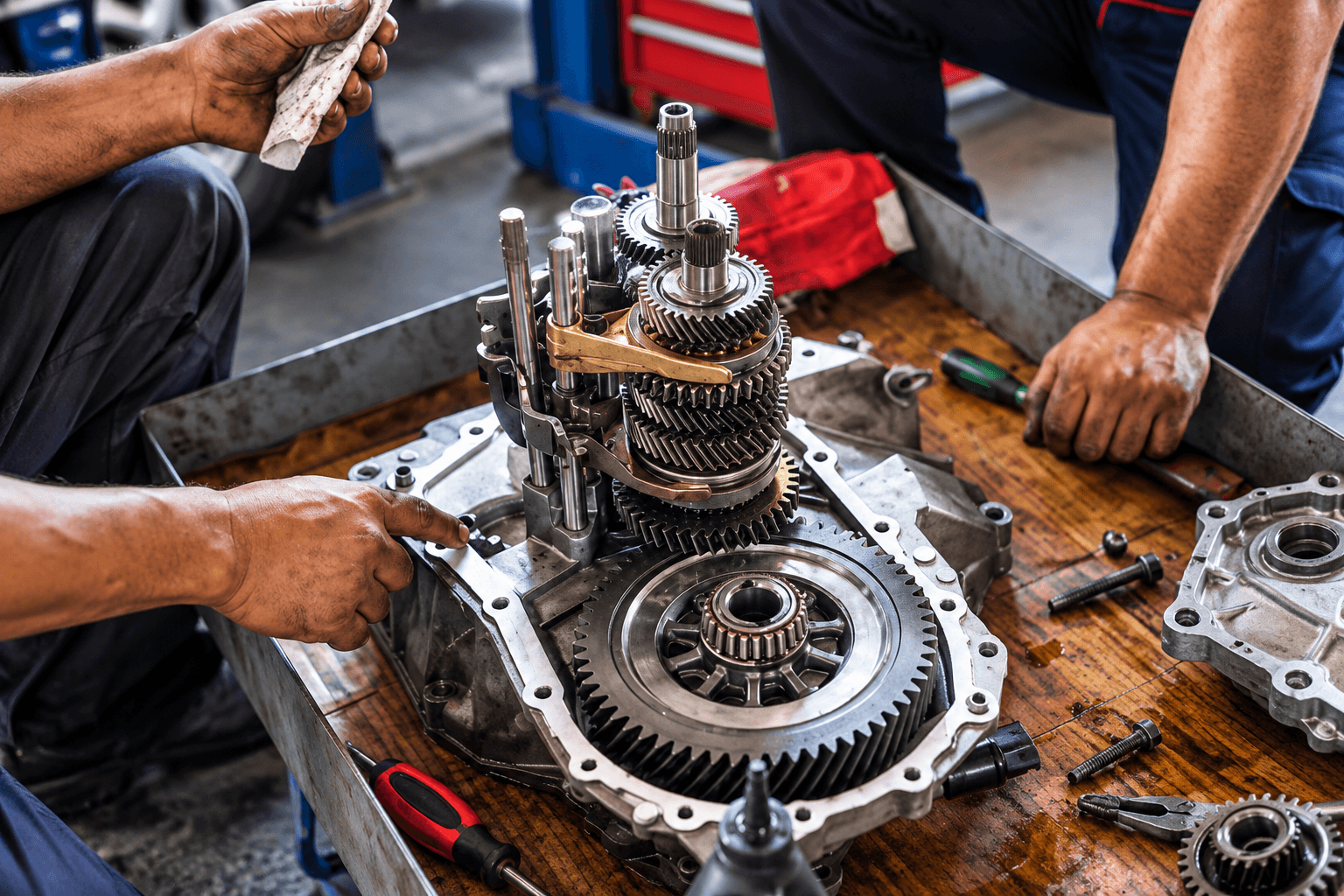

How a Gearbox Fault Should Be Diagnosed
A systematic inspection distinguishes external control problems from internal gear, bearing and clutch damage. Test procedures vary with manufacturer and gearbox model.
Vehicle & Symptoms
Record make, model, year, mileage, gearbox code and when the fault occurs: cold, warm, under load, at idle or in particular gears.
Visual & Leak Inspection
Check case, mountings, fluid leaks, driveshafts, linkages and related clutch components to identify non-gearbox causes.
Fluid & Contamination
Verify the correct fluid specification and level-check procedure; inspect fluid condition and any debris if appropriate.
Electronic & Live Data
Where equipped, read fault codes, sensor data, commanded gears, pressure/temperature signals and relevant adaptations.
Mechanical Testing
Assess noise by gear/speed, shaft play, bearing condition, selection operation and hydraulic pressure where specified.
Findings & Repair Plan
Confirm the cause as far as testing allows, then compare targeted repair, internal rebuild and replacement before approval.
Gearbox Repairs, Components and Rebuilding Options
These are common categories of gearbox work. The suitable action depends on confirmed diagnosis, parts availability, gearbox design and service capability.
Gear & Shaft Inspection
Check gear tooth surfaces, engagement teeth, shaft alignment and wear patterns before deciding on individual part replacement.
Bearing Replacement
Investigate shaft whine, excessive play and rough running, then inspect applicable bearings and seats during rebuild.
Synchronizer Repair
Inspect worn synchronizer rings, hubs and sleeves for gear-selection grinding or difficulty engaging a specific gear.
Gearbox Oil Leak Repair
Locate leaks around seals, gaskets, housings and serviceable connections; correct fluid level after completing repairs.
Clutch Pack & Gearset Checks
Examine planetary members, clutch friction material and internal seals when supported by mechanical or hydraulic findings.
Forks, Linkage & Actuators
Check mechanical and automated gear-selection systems, including linkage alignment and position feedback where fitted.

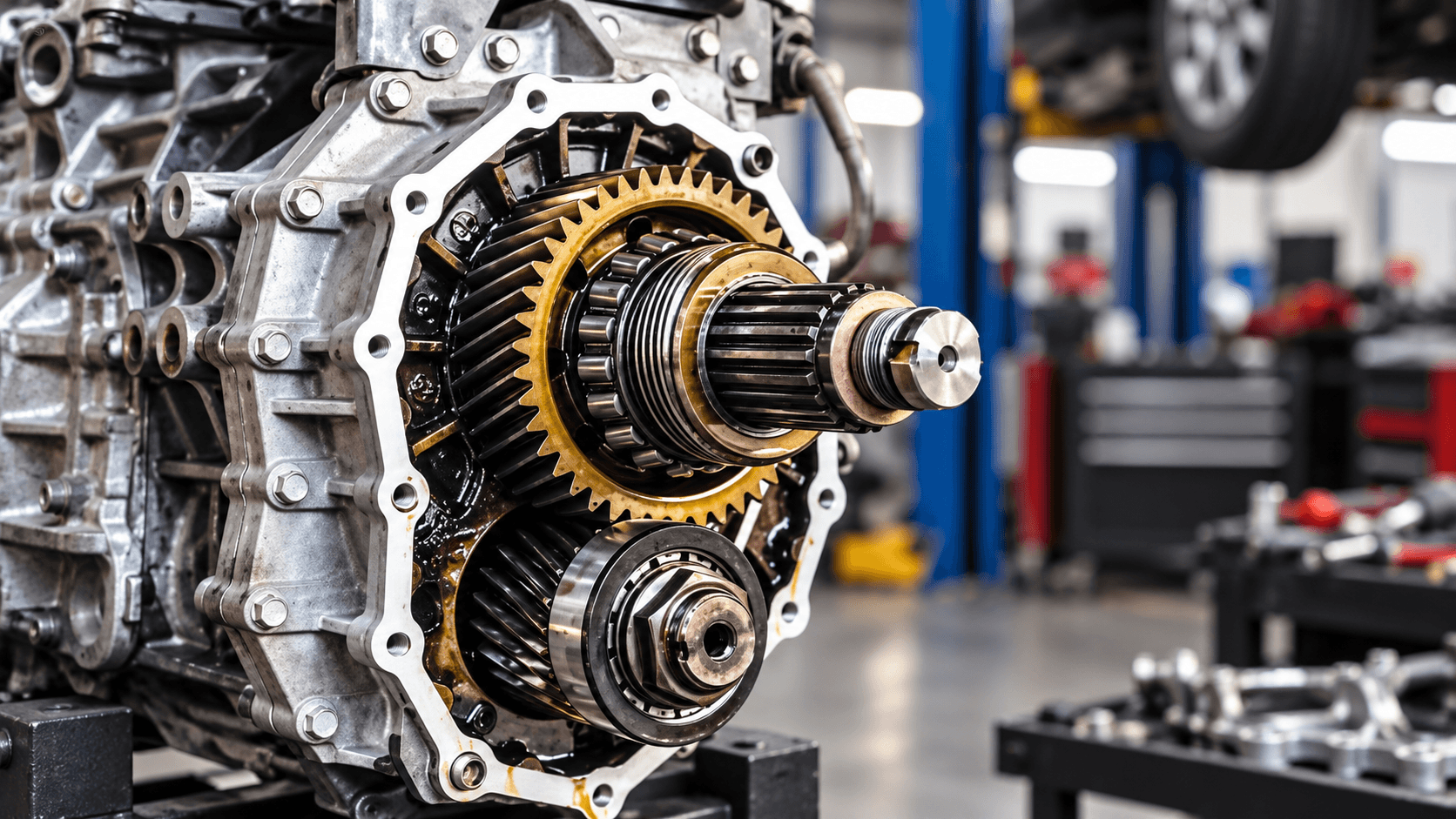

Gearbox Overhaul / Rebuild
Strip, clean, measure, inspect and rebuild internal assemblies using suitable parts and model-specific tolerances.
Gearbox Replacement Advice
Compare replacement options when case damage or widespread internal wear makes a reliable repair impractical.

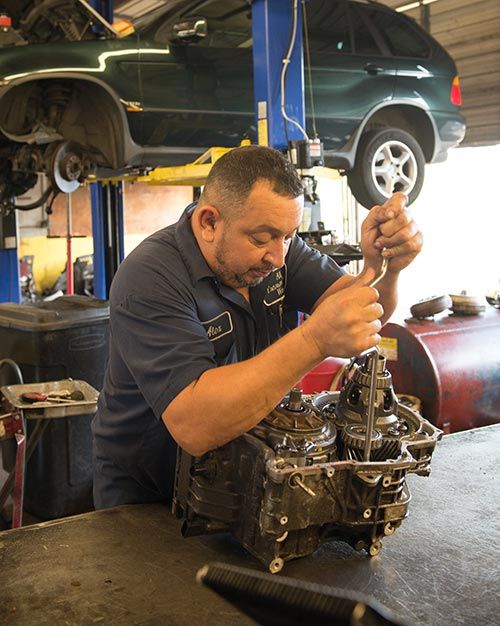

Gear Oil / ATF Service Checks
Assess correct lubricant type, filter, level method and the manufacturer's service schedule; avoid generic one-fluid-fits-all advice.
Repair, Rebuild or Replace a Gearbox?
Do not approve an entire gearbox replacement based only on a warning light. The cost-effective choice depends on the cause, extent of wear and available replacement parts.
| Option | Usually considered when | What to confirm before approval |
|---|---|---|
| Targeted Component Repair | A seal, bearing, linkage, selector or other limited component is confirmed faulty and is serviceable. | Whether further internal wear is present; parts and labour included in the quote. |
| Gearbox Rebuild / Overhaul | Internal wear exists but the casing and principal assemblies are serviceable and suitable parts are available. | Measurements, list of replacement parts, testing, workshop scope and written repair terms. |
| Remanufactured Gearbox | Extensive wear makes a professionally remanufactured unit a more reliable or practical choice. | Unit specification, compatibility, included accessories and supplier warranty terms. |
| New or Used Replacement | The original unit is uneconomical to rebuild or has severe internal/case damage. | Gearbox code compatibility, condition, provenance, installation and written terms. |
A repaired or replacement gearbox may need the correct fluid fill, component adaptation and final road/function checks depending on its design.
How Much Does Gearbox Repair Cost in Dubai?
There is no reliable single price for every gearbox. A bearing repair, complete overhaul and replacement unit have very different parts and labour requirements. Request a written, vehicle-specific estimate after diagnosis.
Get a Gearbox Quote ↗- Car make, model, year and gearbox code
- Manual, AT, CVT, DCT, AMT or EV design
- External fault versus internal mechanical damage
- Parts availability and compatibility
- Need for removal, teardown or machining
- Lubricants, seals, filters and testing
- Specialist calibration requirements
- Supplier and repair warranty terms
Gearbox Care Tips for Dubai Driving Conditions
Good maintenance cannot eliminate wear, but it can reduce avoidable problems. Always follow the vehicle manufacturer's oil specification and model-specific service instructions.
Use the correct gearbox lubricant
Manual gear oil, automatic ATF, CVT fluids and some DCT lubricants have different specifications. A generic substitute may harm operation.
Investigate leaks promptly
Low lubricant can reduce hydraulic pressure, cooling and gear/bearing protection. A visible leak should be traced, not just repeatedly topped up.
Do not ignore abnormal noise
Whine, grinding or new vibration may worsen as components wear. Early testing can reveal a more limited problem.
Avoid forcing gear selection
Forcing a manual gearbox into gear can damage engagement components. Difficulty selecting a gear warrants inspection.
Use sensible towing practices
Incorrect flat towing can damage certain automatic, AWD and EV gearboxes. Follow the owner's manual and recovery guidance.
Maintain related driveline components
Worn mounts, poor clutch release, shafts or cooling faults can influence gearbox operation and should be assessed alongside it.
Gearbox Repair Dubai — Frequently Asked Questions
Practical answers about gearbox symptoms, repair choices and maintenance.
What is the difference between a gearbox and a transmission?
“Gearbox” often refers specifically to the ratio-changing mechanical assembly. “Transmission” can refer to the gearbox or to the wider system including torque coupling, hydraulics and electronic controls. This page concentrates on gearbox components and mechanical repair.
Can a damaged manual gearbox be repaired?
Many manual gearbox faults can be repaired with replacement bearings, gears, synchronizer parts or seals when the housing and parts are serviceable. A diagnosis and internal inspection determine whether rebuilding makes sense.
Do all automatic gearboxes use the same parts?
No. Torque-converter automatics, DCT/DSG systems, CVTs and AMTs use different mechanisms. Even gearboxes of the same general type may require different fluids, tools and service procedures.
Why does my gearbox make a whining noise?
Gear or bearing wear, inadequate lubrication and final-drive problems are among the possibilities. A technician should correlate the noise with vehicle speed, engine speed, selected gear and load before concluding it is the gearbox.
Can a gearbox oil change repair damaged gears?
No. Correct fluid can support proper lubrication or hydraulic function, but it cannot rebuild damaged gear teeth, bearings or clutch friction surfaces. Physical wear needs mechanical evaluation.
What causes grinding in a manual gearbox?
Possible causes include worn synchronizers, clutch not fully disengaging, linkage problems or damaged engagement teeth. The inspection should separate clutch and external faults from internal gearbox wear.
Is a DSG gearbox the same as a CVT?
No. A dual-clutch gearbox uses two clutch paths and stepped gear ratios. A typical belt/chain CVT changes ratio using variable-diameter pulleys. Their diagnostics, parts and servicing differ substantially.
Can I drive if my gearbox is leaking oil?
Driving with a significant leak may cause loss of lubrication or hydraulic pressure. If the leak is heavy, gear engagement is affected or there are abnormal noises, stop safely and arrange inspection or recovery.
How long does a gearbox rebuild take?
Time depends on the gearbox model, extent of damage, parts availability and workshop scheduling. An accurate timeframe should be provided after inspection and parts confirmation.
Should I choose a used or rebuilt gearbox?
Compare part code, condition, installation requirements, total cost and written supplier terms. A documented rebuild or remanufactured unit may offer different assurances than an unknown-condition used unit.
Can EV or hybrid gearboxes require repair?
Yes. Their gears, bearings and seals can wear or leak. However, hybrid and EV drive units have additional electrical hazards and must be assessed by appropriately qualified specialists.
What information should I send for a gearbox quote?
Provide the vehicle make, model, year, gearbox type if known, Dubai location, symptoms and any relevant diagnostic codes. Photos or short videos may also help the team assess the next step.
Need a Gearbox Inspection in Dubai?
Tell the team what happens when you select a gear, accelerate or drive at speed. Share the car model, year, symptoms and your Dubai location so the appropriate next step can be discussed.
Complex gearbox rebuilds may require workshop removal and inspection; availability is confirmed individually.
